Kivy ファイル選択ダイアログからテキストファイルを読み込む（Python Kivyの取説・使い方第１４回）

はじめに

今回は納得できるまでの結果は出ませんでした。まだまだ課題が残ってますが、Kivyでのポップアップ（Popup）とファイル選択（FileChooser）をやってみました。

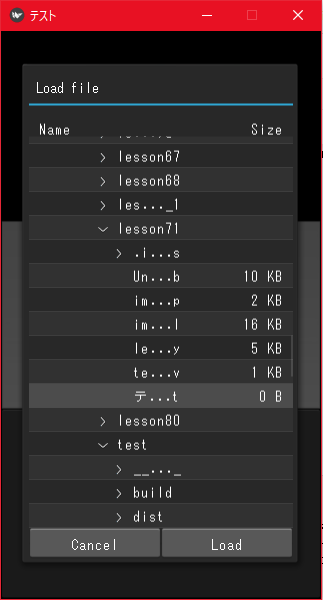

f:id:Start_python:20191224141516p:plain 　　 f:id:Start_python:20191224141943p:plain

プログラムのコード

# フル画面を解除して画面の幅と高さを設定
from kivy.config import Config
Config.set('graphics', 'fullscreen', 0)
Config.set('graphics', 'width', 320)
Config.set('graphics', 'height', 568)
Config.set('graphics', 'resizable', 0)

import ctypes
from kivy.app import App
from kivy.uix.boxlayout import BoxLayout
from kivy.uix.widget import Widget
from kivy.uix.textinput import TextInput
from kivy.uix.label import Label
from kivy.resources import resource_add_path
from kivy.core.text import LabelBase, DEFAULT_FONT
from kivy.utils import platform
from kivy.base import EventLoop
from kivy.properties import StringProperty, ObjectProperty
from kivy.utils import escape_markup

import os
from kivy.uix.popup import Popup
from kivy.core.window import Window


resource_add_path('c:/Windows/Fonts')
LabelBase.register(DEFAULT_FONT, 'msgothic.ttc')

dll = ctypes.cdll.LoadLibrary('./ime_operator.dll')
dll.getComposition.restype = ctypes.c_char_p
dll.getEnterdString.restype = ctypes.c_char_p


class TextInputIME(TextInput):

    composition_string = StringProperty()
    sdl_composition = StringProperty()
    composition_window = ObjectProperty()

    def __init__(self, **kwargs):

        super(TextInputIME, self).__init__(**kwargs)

        self.disable_on_textedit = (False, False)
        self.is_openIME = False
        self.old_cursor_color = self.cursor_color
        self.old_composition = ''

        EventLoop.window.bind(on_textedit=self._on_textedit)

    def _on_textedit(self, _, value):

        self.sdl_composition = value
        self.is_openIME = bool(dll.getIsOpenIME())

        try:
            entered_text = dll.getEnterdString().decode('cp932')
            composition_string = dll.getComposition().decode('cp932')
        except UnicodeError:
            print('failed to decode IME information')

        if composition_string != '\n\n':
            self.composition_string = composition_string
        else:
            self.composition_string = ''

        if (entered_text != '\n\n' and self.is_openIME and self.old_composition != value):
            index = self.cursor_index()
            self.text = self.text[:index - 1] + entered_text + self.text[index:]
            self.composition_string = ''
            self.old_composition = value
            return None

        self.old_composition = value

    def insert_text(self, substring, from_undo=False):

        if substring == self.sdl_composition:
            return None
        else:
            return super(TextInputIME, self).insert_text(substring, from_undo)

    def keyboard_on_key_down(self, window, keycode, text, modifiers, dt=0):

        cursor_operations = {'left', 'up', 'right', 'down', 'backspace', 'tab'}
        self.composition_cursor_index = len(self.composition_string)

        if keycode[1] == 'left':
            self.composition_cursor_index -= 1

        if keycode[1] == 'right':
            self.composition_cursor_index += 1

        if keycode[1] in cursor_operations and self.composition_string:
            return None

        return super(
            TextInputIME,
            self).keyboard_on_key_down(
            window,
            keycode,
            text,
            modifiers)

    def on_composition_string(self, _, value):

        if self.composition_string:
            self.cursor_color = (0, 0, 0, 0)
        else:
            self.cursor_color = self.old_cursor_color

        if not dll.getIsOpenIME():
            return

        self.composition_window.text = '[u]' + value + '[/u]'


class CompositionLabel(Label):

    textinput = ObjectProperty()

    def __init__(self, **kwargs):
        super(CompositionLabel, self).__init__(**kwargs)


class LoadDialog(Widget):

    load = ObjectProperty(None)
    cancel = ObjectProperty(None)


class MainScreen(Widget):

    text = StringProperty()

    def on_command(self, **kwargs):

        content = LoadDialog(load=self.load, cancel=self.dismiss_popup)
        self._popup = Popup(title='Load file', content=content, size_hint=(0.9, 0.9))
        self._popup.open()

    def dismiss_popup(self):
        self._popup.dismiss()

    def load(self, path, filename):
        self.ids['label1'].text = str(filename[0])
        self.dismiss_popup()
        with open(os.path.join(path, filename[0])) as file:
            self.ids['textinput'].text = str(file.read())

class TestApp(App):
    def build(self):
        self.title = 'テスト'
        return MainScreen()

if __name__ == '__main__':
    TestApp().run()

kvファイル（test.kv）

<MainScreen>:
    BoxLayout:
        size: root.size
        orientation: "vertical"

        Label:
            id: label1
            text_size: root.width, None
            text: root.text

        RelativeLayout:
            TextInputIME:
                id: textinput
                composition_window: cmp_window
                pos: root.pos
                size: root.size
            CompositionLabel:
                id: cmp_window
                textinput: textinput
                x: textinput.cursor_pos[0]
                y: textinput.cursor_pos[1] - self.height

        Button:
            text: "OPEN"
            on_press: root.on_command()


<CompositionLabel>:
    size_hint_x: None
    size_hint_y: None
    width: self.font_size * (len(self.text)-7)
    height: self.font_size
    color: 0,0,0,1
    markup: True
    canvas.before:
        Color:
            rgba: 1,1,1,len(self.text)-7
        Rectangle:
            pos: self.pos
            size: self.size

<LoadDialog>:
    BoxLayout:
        size: root.size
        pos: root.pos
        orientation: "vertical"
        FileChooserListView:
        #FileChooserIconView:
            id: filechooser

        BoxLayout:
            size_hint_y: None
            height: 30
            Button:
                text: "Cancel"
                on_release: root.cancel()

            Button:
                text: "Load"
                on_release: root.load(filechooser.path,filechooser.selection)

解説

import os
from kivy.uix.popup import Popup
from kivy.core.window import Window

これらのモジュールを新しくインポートしています。

class LoadDialog(Widget):

kvファイルで作った<LoadDialog>用にクラスを作ります。

def on_command(self, **kwargs):
content = LoadDialog(load=self.load, cancel=self.dismiss_popup)
self._popup = Popup(title='Load file', content=content, size_hint=(0.9, 0.9))
self._popup.open()

ボタンが押されたときの処理です。ポップアップを開きます。

def load(self, path, filename):
self.ids['label1'].text = str(filename[0])
self.dismiss_popup()
with open(os.path.join(path, filename[0])) as file:
self.ids['textinput'].text = str(file.read())
